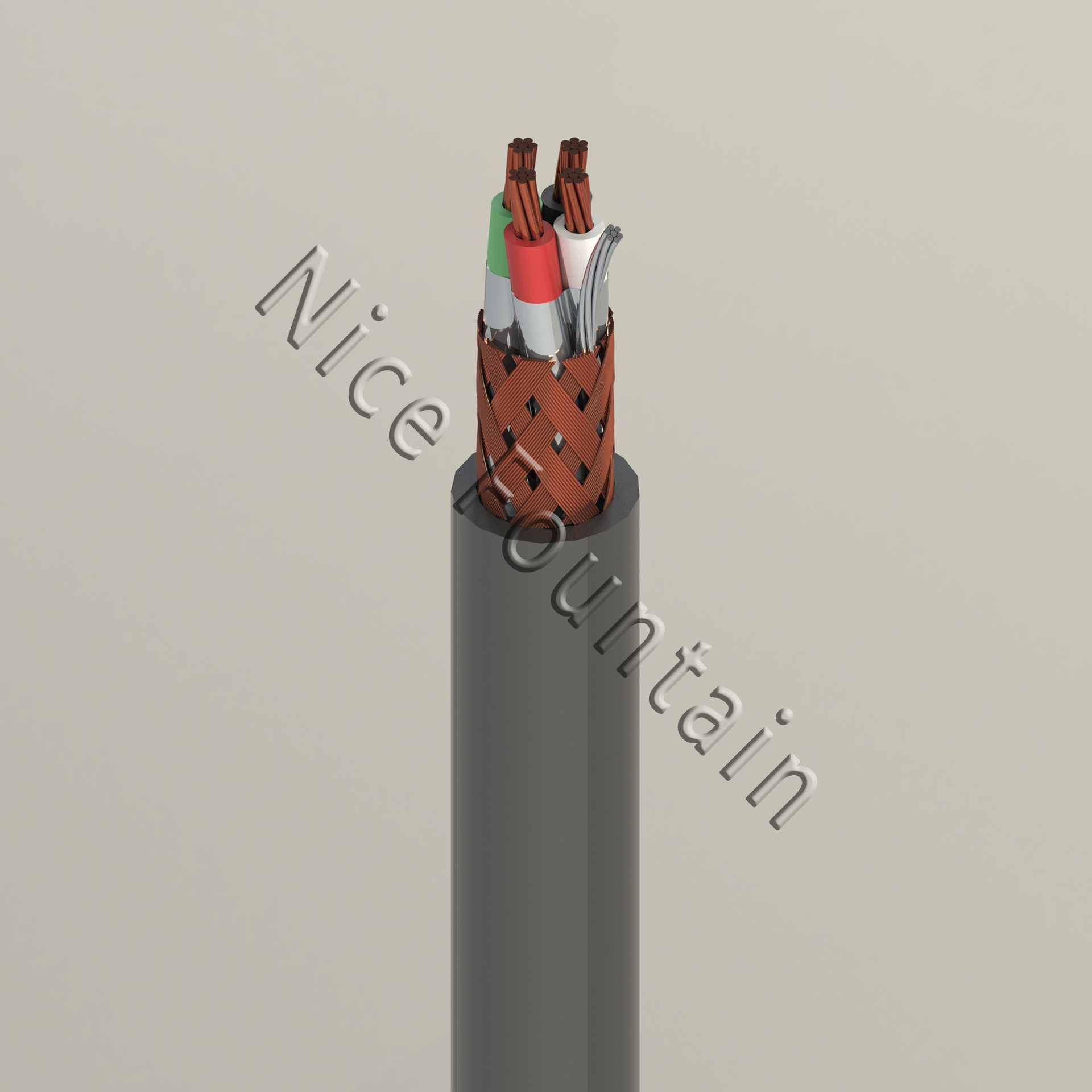

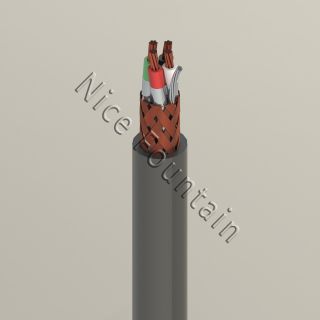

CNS 12726 600V 遮蔽型控制電纜
控制/電力電纜
型號：控制電纜、CNS 12726、CNS12726、CNS、CVV、CEV、CEE、CCV、CCE、S、SB、SLA、SCF、SF、600V
產品介紹
規格
控制用PVC絕緣PVC被覆電纜(銅帶遮蔽)CVV-S
控制用PE絕緣PVC被覆電纜(銅線編織)CEV-S
控制用PE絕緣PE被覆電纜(銅帶遮蔽)CEE-S
控制用XLPE絕緣PVC被覆電纜(銅帶遮蔽)CCV-S
控制用XLPE絕緣PE被覆電纜(銅帶遮蔽)CCE-S
|
心 線 數 |
導體 |
絕緣體 厚度 mm |
被覆 厚度 mm |
完成 外徑 (約) mm |
導體電阻 (20oC) Ω/km |
||
|
標稱 截面積 mm2 |
構成 (線數/ 單線徑 /mm) |
外徑(約) mm |
|||||
|
2 |
0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
10.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
10.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
11.0 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
12.5 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
14.5 | 3.40 | |
| 3 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
10.5 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
11.0 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
12.0 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
13.0 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
15.0 | 3.40 | |
| 4 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
11.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
11.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
12.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
14.0 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
16.5 | 3.40 | |
| 5 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
12.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
12.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
13.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
15.0 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
18.0 | 3.40 | |
| 6 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
13.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
13.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
14.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
16.5 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
19.5 | 3.40 | |
| 7 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
13.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
13.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
14.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
16.5 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
19.5 | 3.40 | |
| 8 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
13.5 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
14.0 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
15.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
17.5 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
21 | 3.40 | |
| 10 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
15.5 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
16.0 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
18.0 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
21 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
25 | 3.40 | |
| 12 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
16.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
16.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
18.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
21 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
26 | 3.40 | |
| 15 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
17.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
18.0 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
20.0 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
23 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
28 | 3.40 | |
| 20 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
19.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
19.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
22 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
26 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
31 | 3.40 | |
| 30 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
23 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
24 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
27 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
31 | 5.30 | |
控制用PVC絕緣PVC被覆電纜(銅帶遮蔽)CVV-S
|
心 線 數 |
導體 |
絕緣體 厚度 mm |
被覆 厚度 mm |
完成 外徑 (約) mm |
導體電阻 (20oC) Ω/km |
||
|
標稱 截面積 mm2 |
構成 (線數/ 單線徑 /mm) |
外徑(約) mm |
|||||
|
2 |
8 | 7/1.2 | 3.6 | 1.2 | 1.5 | 16.5 | 2.36 |
| 圓形壓縮 | 3.4 | 1.5 | 16.0 | 2.34 | |||
| 14 | 7/1.6 | 4.8 | 1.4 | 1.5 | 19.5 | 1.33 | |
| 圓形壓縮 | 4.4 | 1.5 | 19.0 | 1.34 | |||
| 22 | 7/2.0 | 6.0 | 1.6 | 1.6 | 23 | 0.840 | |
| 圓形壓縮 | 5.5 | 1.5 | 22 | 0.849 | |||
| 3 | 8 | 7/1.2 | 3.6 | 1.2 | 1.5 | 16.5 | 2.36 |
| 圓形壓縮 | 3.4 | 1.5 | 16.0 | 2.34 | |||
| 14 | 7/1.6 | 4.8 | 1.4 | 1.5 | 19.5 | 1.33 | |
| 圓形壓縮 | 4.4 | 1.5 | 19.0 | 1.34 | |||
| 22 | 7/2.0 | 6.0 | 1.6 | 1.6 | 23 | 0.840 | |
| 圓形壓縮 | 5.5 | 1.5 | 22 | 0.849 | |||
控制用PE絕緣PVC被覆電纜(銅帶編織)CEV-S
控制用PE絕緣PE被覆電纜(銅帶遮蔽)CEE-S
控制用XLPE絕緣PVC被覆電纜(銅帶遮蔽)CCV-S
控制用XLPE絕緣PE被覆電纜(銅帶遮蔽)CCE-S
|
心 線 數 |
導體 |
絕緣體 厚度 mm |
被覆 厚度 mm |
完成 外徑 (約) mm |
導體電阻 (20oC) Ω/km |
||
|
標稱 截面積 mm2 |
構成 (線數/ 單線徑 /mm) |
外徑(約) mm |
|||||
|
2 |
8 | 7/1.2 | 3.6 | 1.0 | 1.5 | 15.5 | 2.36 |
| 圓形壓縮 | 3.4 | 1.5 | 15.0 | 2.34 | |||
| 14 | 7/1.6 | 4.8 | 1.0 | 1.5 | 18.0 | 1.33 | |
| 圓形壓縮 | 4.4 | 1.5 | 17.0 | 1.34 | |||
| 22 | 7/2.0 | 6.0 | 1.2 | 1.5 | 21 | 0.840 | |
| 圓形壓縮 | 5.5 | 1.5 | 20 | 0.849 | |||
| 3 | 8 | 7/1.2 | 3.6 | 1.0 | 1.5 | 16.5 | 2.36 |
| 圓形壓縮 | 3.4 | 1.5 | 16.0 | 2.34 | |||
| 14 | 7/1.6 | 4.8 | 1.0 | 1.5 | 19.0 | 1.33 | |
| 圓形壓縮 | 4.4 | 1.5 | 18.0 | 1.34 | |||
| 22 | 7/2.0 | 6.0 | 1.2 | 1.6 | 23 | 0.840 | |
| 圓形壓縮 | 5.5 | 1.5 | 22 | 0.849 | |||
控制用PVC絕緣PVC被覆電纜(銅線編織遮蔽)CVV-SB
控制用PE絕緣PVC被覆電纜(銅線編織遮蔽)CEV-SB
控制用PE絕緣PE被覆電纜(銅線編織遮蔽)CEE-SB
控制用XLPE絕緣PVC被覆電纜(銅線編織遮蔽)CCV-SB
控制用XLPE絕緣PE被覆電纜(銅線編織遮蔽)CCE-SB
|
心 線 數 |
導體 |
絕緣體 厚度 mm |
被覆 厚度 mm |
完成 外徑 (約) mm |
導體電阻 (20oC) Ω/km |
||
|
標稱 截面積 mm2 |
構成 (線數/ 單線徑 /mm) |
外徑(約) mm |
|||||
|
2 |
0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
9.8 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
10.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
11.0 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
12.5 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
14.5 | 3.40 | |
| 3 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
10.5 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
11.0 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
12.0 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
13.0 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
15.0 | 3.40 | |
| 4 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
11.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
11.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
12.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
14.0 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
16.5 | 3.40 | |
| 5 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
12.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
12.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
13.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
15.5 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
18.0 | 3.40 | |
| 6 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
13.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
13.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
14.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
16.5 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
19.5 | 3.40 | |
| 7 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
13.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
13.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
14.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
16.5 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
19.5 | 3.40 | |
| 8 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
13.5 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
14.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
16.0 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
18.0 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
21.0 | 3.40 | |
| 10 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
15.5 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
16.5 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
18.0 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
21.0 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
25.0 | 3.40 | |
| 12 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
16.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
17.0 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
18.5 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
22.0 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
26 | 3.40 | |
| 15 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
17.5 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
18.0 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
20 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
23.0 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
28 | 3.40 | |
| 20 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
19.0 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
20 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
23 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
26 | 5.30 | |
| 5.5 | 7/1.0 | 3.0 | 1.0 |
1.5 |
32 | 3.40 | |
| 30 | 0.9 | 7/0.4 | 1.2 | 0.8 |
1.5 |
23 | 21.3 |
| 1.25 | 7/0.45 | 1.35 | 0.8 |
1.5 |
24 | 16.8 | |
| 2.0 | 7/0.6 | 1.8 | 0.8 |
1.5 |
27 | 9.42 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 |
1.5 |
31 | 5.30 | |
